An industrial ferrule marking printer is a high-precision, heavy-duty thermal transfer printing appliance designed to print micro-sized alphanumeric identification strings and serialization data directly onto round insulation sleeves that pair with crimped wire ferrules. Used extensively by control panel builders, PLC cabinet technicians, and automation engineers, these advanced printers apply crisp, smudge-proof codes onto continuous PVC tubing or polyolefin heat-shrink sleeves. This specialized process ensures that each independent electrical connection is permanently identified right at its terminal block insertion point, establishing clear, ultra-sharp traceability within high-density electrical assemblies.
Inside modern industrial automation enclosures and complex motor control centers, space is at an absolute premium. DIN-rail assemblies often house hundreds of dense electrical terminations spaced just millimeters apart. When troubleshooting a fault within a packed control cabinet, a single misplaced wire or unreadable terminal indicator can stall an entire factory line, incurring thousands of dollars in lost productivity.
Deploying a dedicated industrial ferrule marking system completely eliminates these dangerous tracking errors. These specialized systems utilize precision thermal printheads capable of rendering ultra-sharp text at 203 to 300 DPI without bleeding or smudging. By generating pre-cut, sequentially numbered insulation sleeves that slide directly over the wire conductor before crimping, panel builders can establish a sleek, space-saving identifier that easily survives heavy friction, continuous vibration, and rigorous third-party regulatory compliance audits.
AIMO approaches high-density ferrule marking tasks from every practical angle, offering three specialized hardware platforms designed to optimize your panel building workflow:
AIMO M550 (The Ultimate Bulk Benchtop Master): Positioned as the premier alternative for heavy-duty panel building, the M550 feeds round PVC sleeves ($\phi0.5\text{mm} – \phi6\text{mm}$) and polyolefin shrink tubes ($\phi2\text{mm} – \phi6\text{mm}$) smoothly, printing crisp ferrule markers at a rapid 40mm/s. Its advanced alloy cutting system supports adjustable auto full-cut and half-cut functions, keeping long strings of sequential numbers neatly arranged for fast on-site installation.
AIMO LM2800 (The Smart Bluetooth Data Link): When a project requires large-scale database integration, the LM2800 bridges the gap. By connecting to our mobile and desktop layout apps via Bluetooth, operators can instantly import complex alphanumeric wire lists from Excel, while its high-contrast backlit LCD screen ensures clear layout tracking inside low-light assembly areas.

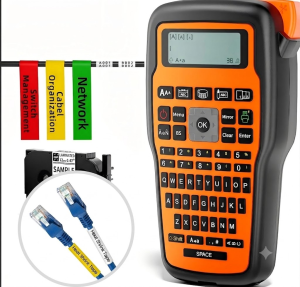

AIMO E1000 Pro (The Quick Handheld Field Auditor): For on-site retrofitting, system upgrades, or emergency maintenance, this rugged handheld tool provides instant portability. Outfitted with specialized physical keyboards available in English, Russian, and Arabic variants and one-touch formatting hotkeys, field contractors can print high-insulation heat shrink sleeves directly at the machine without needing a workstation.
Q1: What wire gauges and diameters are compatible with the AIMO M550 ferrule printer?
A: The AIMO M550 is highly versatile, processing standard industrial PVC tubing sizes ranging from （φ0.5mm-φ6mm）, as well as specialized polyolefin heat-shrink sleeves from （φ2-φ6mm）, covering a wide variety of industrial conductor gauges from thin signal lines up to heavy power leads.
Q2: Are AIMO ferrule marking consumables resistant to harsh industrial chemicals?
A: Yes. Our proprietary consumables undergo extensive testing, proving them highly resistant to common industrial challenges like machine lubricants, hydraulic fluids, alcohol washes, and continuous UV exposure, ensuring the printed data remains crisp and readable over long lifecycles.
Q3: Can I use AIMO ferrule consumables inside older, legacy fleet labelers?
A: Yes, our proprietary consumables are highly versatile. For instance, our VolenGo industrial cartridge line is engineered to serve as a premium, highly cost-effective direct replacement for legacy lines like the Brother P-Touch HSe series, fitting perfectly into your existing equipment fleet to help lower your ongoing operational overhead.
Q4: What production scale and partnership advantages does the AIMO factory offer B2B clients?
A: We operate an expansive 65,000+ square meter automated smart manufacturing facility, keeping our supply chain highly stable and predictable. With over 22% of our entire workforce dedicated to R&D and holding more than 300 patents, we comfortably support large-scale wholesale orders and deep OEM/ODM custom projects with excellent cost margins and an official 1-year factory warranty.
